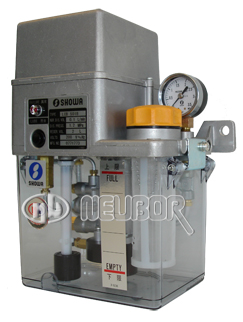

SHOWA LUBRICATION UNIT LCB5


The LCB5 is a compact centralized lubrication unit supplied with an IC timer (control board). The basic LCB5 unit combines a MLB01W1 pump with either a 2L plastic tank, a 2L die-cast aluminium tank or a 4L extended plastic tank.

Each model, as standard is supplied with an IC timer (control board), a pressure switch, s float switch and a “LUBE” switch, with the option of a pressure gauge.

The LCB5 models are high quality pump unit available at a very affordable price.

Technical Features

 Discharge Vol. (L/min)
0.1/ 0.12L / min   50 / 60HZ

 Discharge Pressure (MPa)

1.2 MPa (12 Bar)
 Voltage
100V (C)
200V (B)
 Frequency
50Hz
60Hz
50Hz
60Hz
 Current (A)
1.6
1.3
0.9
0.7
 Timer Model Type
YX01
YX02
 Pump Operation Time
For 15 seconds after the pressure has risen and triggered the pressure switch
 Intermittent Period
2, 4, 6, 8, 10, 15, 20, 25, 30, 40, 50, 60, 90, 120, 150, 180 (minutes)
 Warning Triggers
Pressure surge, Pressure loss, Low oil level
 Abnormality Indicator Relay  Rating
AC250V 3A DC30V 3A
 Viscosity Range (cSt)
50 - 800

Models

Model
Type
Pump
Tank / Reservoir
Pressure Gauge
MLB01W2
Plastic 2L
Aluminum 2L
Plastic 4L
PGLS35
LCB500C(B)
X
X
LCB501C(B)
X
X
X
LCB510C(B)
X
X
LCB511C(B)
X
X
X
LCB520C(B)
X
X
LCB521C(B)
X
X
X
